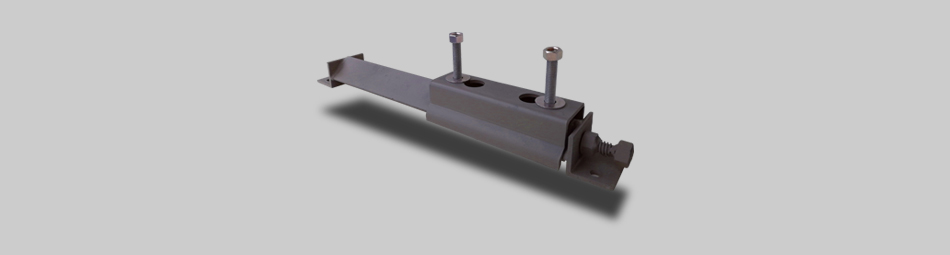

Assinck standard hinged type standard Screw Take-ups are suited for medium duty service and are designed to accommodate a variety of types of pillow block bearings up to 2 15/16″ diameters with overall length to 39″. Heavy duty Screw Take-Ups are also available for larger shafting up to 4 15/16″ diameter with overall length to 51″.
 |
 |
Abp Series Standard Duty Screw Take-Up

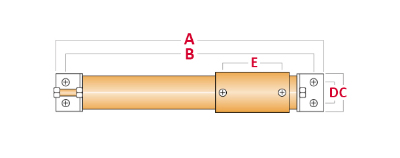

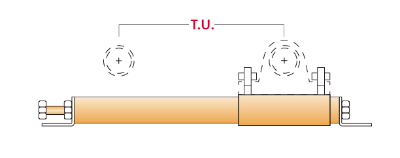

| Item No. | Shaft Diameter | A | B | C | D | E | T.U. | F |
|---|---|---|---|---|---|---|---|---|
| ABP-31X12 | 1 15/16″ | 27″ | 25″ | 3 3/4″ | 2 1/4″ | 6 1/4″ | 12″ | 3 |
| ABP-31X18 | 1 15/16″ | 33″ | 31″ | 3 3/4″ | 2 1/4″ | 6 1/4″ | 18″ | 3 |
| ABP-31X24 | 1 15/16″ | 39″ | 37″ | 3 3/4″ | 2 1/4″ | 6 1/4″ | 24″ | 3 |
| ABP-35X12 | 2 3/16″ | 27″ | 25″ | 3 3/4″ | 2 1/4″ | 6 3/4″ | 12″ | 3 |
| ABP-35X18 | 2 3/16″ | 33″ | 31″ | 3 3/4″ | 2 1/4″ | 6 3/4″ | 18″ | 3 |
| ABP-35X24 | 2 3/16″ | 39″ | 37″ | 3 3/4″ | 2 1/4″ | 6 3/4″ | 24″ | 3 |
| ABP-39X12 | 2 7/16″ | 27″ | 25″ | 3 3/4″ | 2 1/4″ | 7 1/4″ | 12″ | 3 |
| ABP-39X18 | 2 7/16″ | 33″ | 31″ | 3 3/4″ | 2 1/4″ | 7 1/4″ | 18″ | 3 |
| ABP-39X24 | 2 7/16″ | 39″ | 37″ | 3 3/4″ | 2 1/4″ | 7 1/4″ | 24″ | 3 |
| ABP-47X12 | 2 15/16″ | 27″ | 25″ | 3 3/4″ | 2 1/4″ | 8 1/4″ | 12″ | 3 |
| ABP-47X18 | 2 15/16″ | 33″ | 31″ | 3 3/4″ | 2 1/4″ | 8 1/4″ | 18″ | 3 |
| ABP-47X24 | 2 15/16″ | 39″ | 37″ | 3 3/4″ | 2 1/4″ | 8 1/4″ | 24″ | 3 |
Abz Series Heavy Duty Screw Take-Up
| Item No. | Shaft Diameter | A | B | C | D | E | T.U. | F |
|---|---|---|---|---|---|---|---|---|
| ABZ-47X12 | 2 15/16″ | 30″ | 27 1/2″ | 5″ | 3″ | 8 1/4″ | 12″ | 4 |
| ABZ-47X18 | 2 15/16″ | 36″ | 33 1/2″ | 5″ | 3″ | 8 1/4″ | 18″ | 4 |
| ABZ-47X24 | 2 15/16″ | 42″ | 391/2″ | 5″ | 3″ | 8 1/4″ | 24″ | 4 |
| ABZ-47X30 | 2 15/16″ | 48″ | 45 1/2″ | 5″ | 3″ | 8 1/4″ | 30″ | 4 |
| ABZ-55X12 | 3 7/16″ | 33″ | 30 1/2″ | 5″ | 3″ | 10″ | 12″ | 4 |
| ABZ-55X18 | 3 7/16″ | 39″ | 36 1/2″ | 5″ | 3″ | 10″ | 18″ | 4 |
| ABZ-55X24 | 3 7/16″ | 45″ | 42 1/2″ | 5″ | 3″ | 10″ | 24″ | 4 |
| ABZ-55X30 | 3 7/16″ | 51″ | 48 1/2″ | 5″ | 3″ | 10″ | 30″ | 4 |
| ABZ-63X12 | 3 15/16″ | 33″ | 30 1/2″ | 5″ | 3″ | 11″ | 12″ | 4 |
| ABZ-63X18 | 3 15/16″ | 39″ | 36 1/2″ | 5″ | 3″ | 11″ | 18″ | 4 |
| ABZ-63X24 | 3 15/16″ | 45″ | 42 1/2″ | 5″ | 3″ | 11″ | 24″ | 4 |
| ABZ-63X30 | 3 15/16″ | 51″ | 48 1/2″ | 5″ | 3″ | 11″ | 30″ | 4 |
Note: Mounting holes are 9/16″ diameter.
